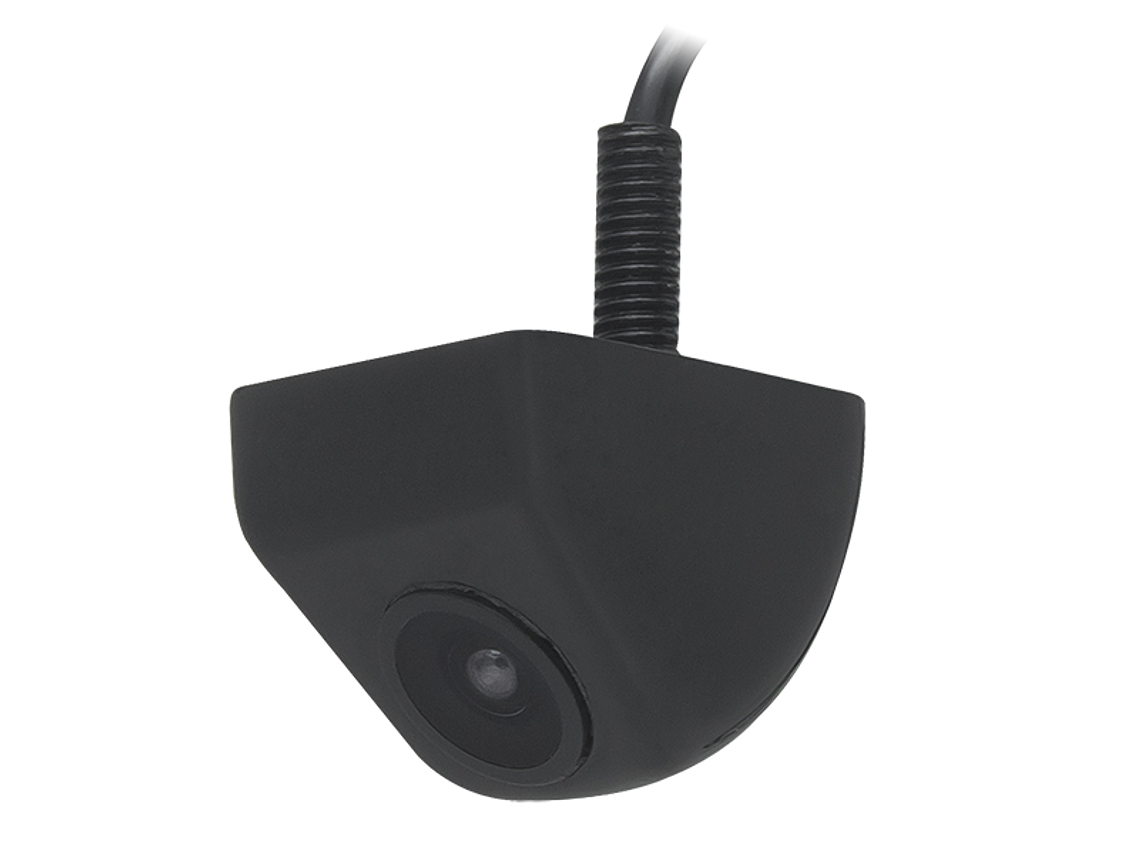

IP67 170º Auto Rear Parking Camera
Description
Wired infrared reversing camera from Blow, designed for installation in passenger cars and vans. The camera's task is to transmit the current image behind the vehicle, which will certainly make parking and reversing easier in places with limited visibility. You can easily avoid hitting an obstacle invisible to the naked eye, but also better observe the lines of the designated parking space.
Specifications:
- Image sensor: 1/3.6 inch CMOS
- Resolution: 648x488
- Measuring area: 4.9 x 3.7
- Lens: F = 1.9 mm / F = 2.0
- Signal system: PAL
- Horizontal sync (kHz): 15625/15734
- V-Sync (Hz): 50/60
- Automatic gain control and backlight adjustment
- Horizontal definition: 480 TV lines
- Minimum Illumination : 0.01 Lux
- Signal/noise: <48.0 [dB]
- Image sensor viewing angle: 170°
- Horizontal viewing angle: 120°
- Vertical viewing angle: 90°
- Diagonal viewing angle: 165°
- Waterproof class: IP67
- Voltage range: DC 9-15V

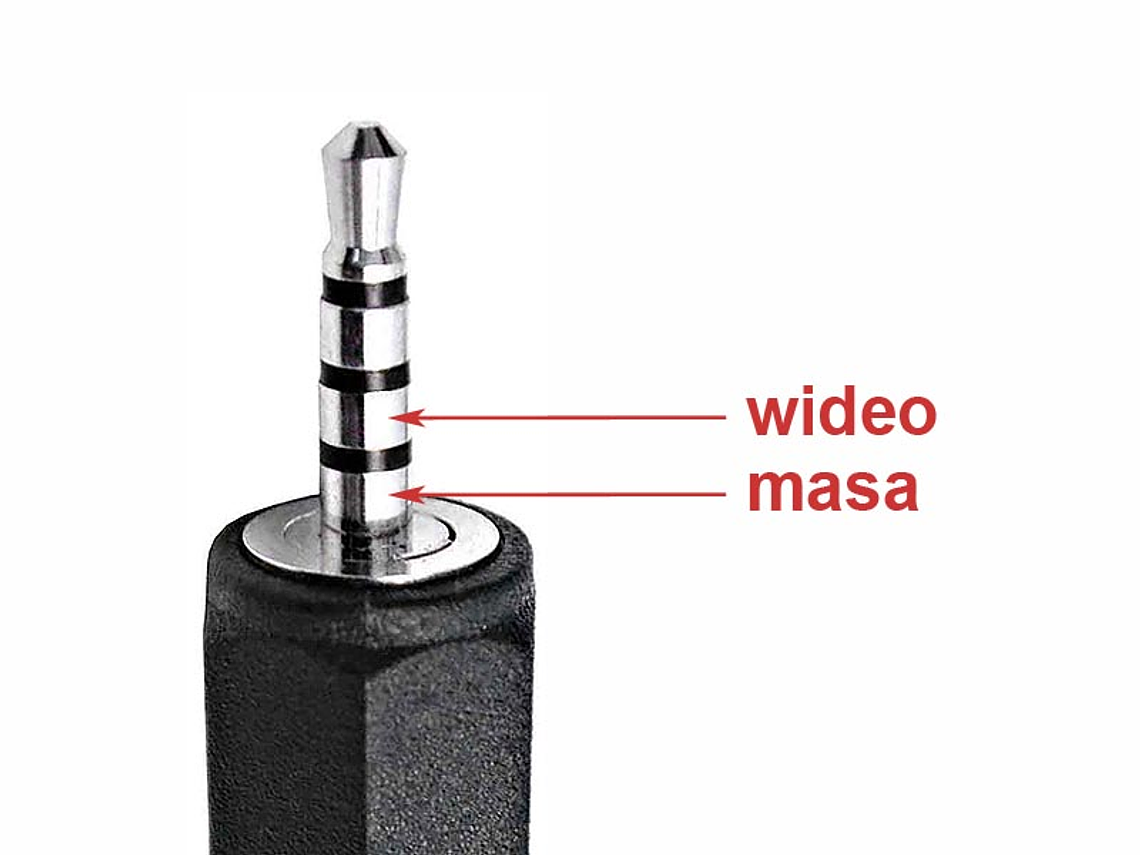

- Video output: 1.0Vp-p / 75 ?
- Working Temperature: -20~+70°C, RH 95% Max
- Storage Temperature: -30 ~ +80°C, RH 95% Max

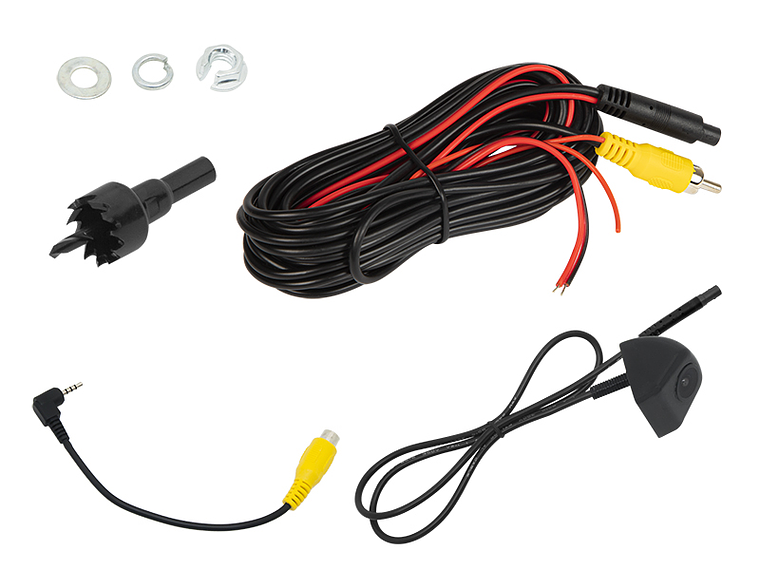

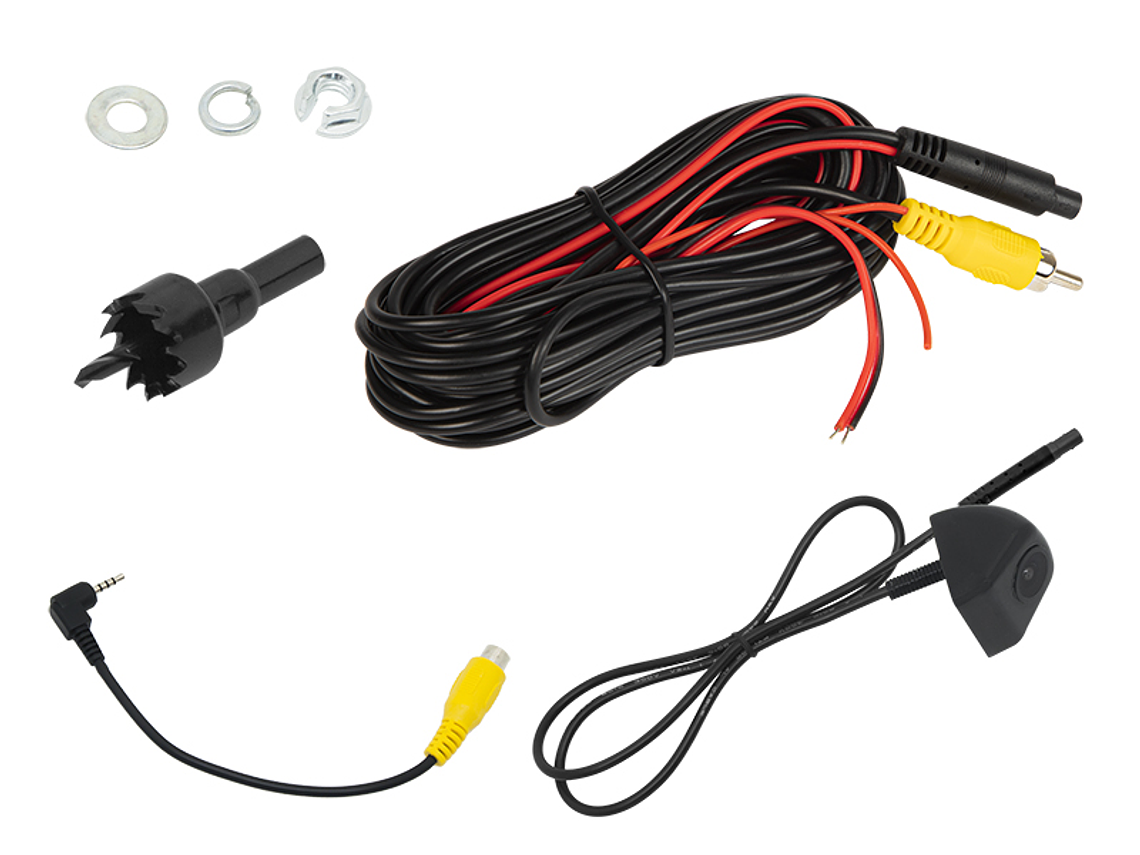

- Camera cable length: 50 cm
- Power cable length: 90 cm
- Length of video cable to monitor: 580 cm
