Xtreme Digital Multimeter DT9205A
|
Description
Features:
• Adjustable LCD display
• Test leads included
• Powered by 9V DC battery
• Low battery indication
• Signaling when exceeding the interval

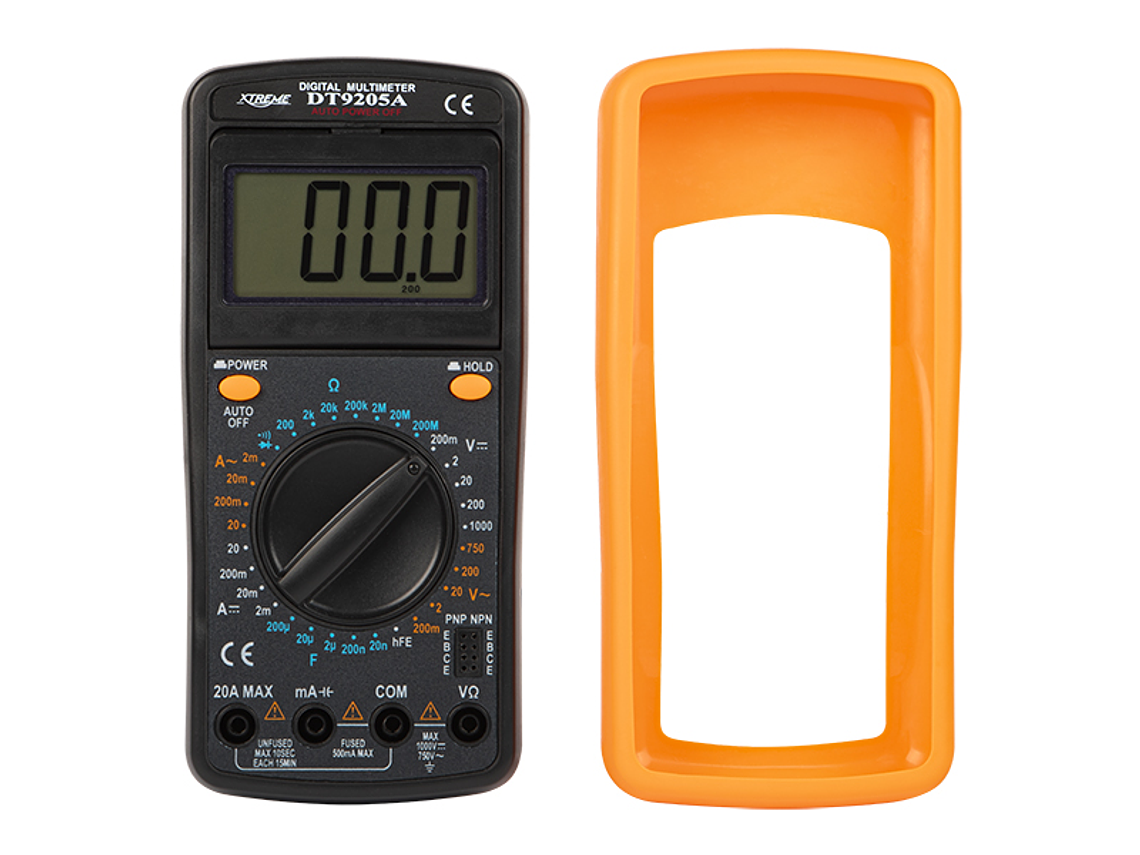

• Rubber, removable cover
• Rotary switch to select specific functions, ranges and turn the meter on and off
The XTREME meter is a universal tool intended for workshops or schools, but it is also perfect for home and professional tasks.

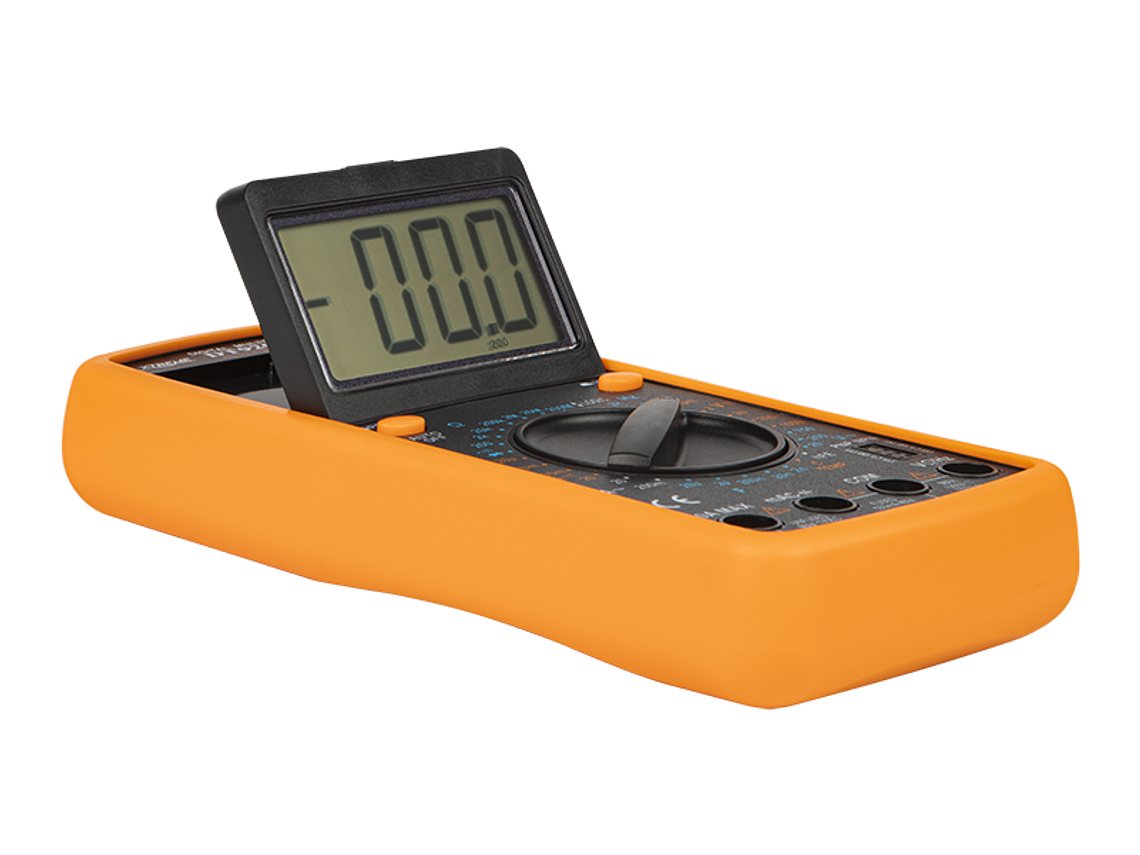

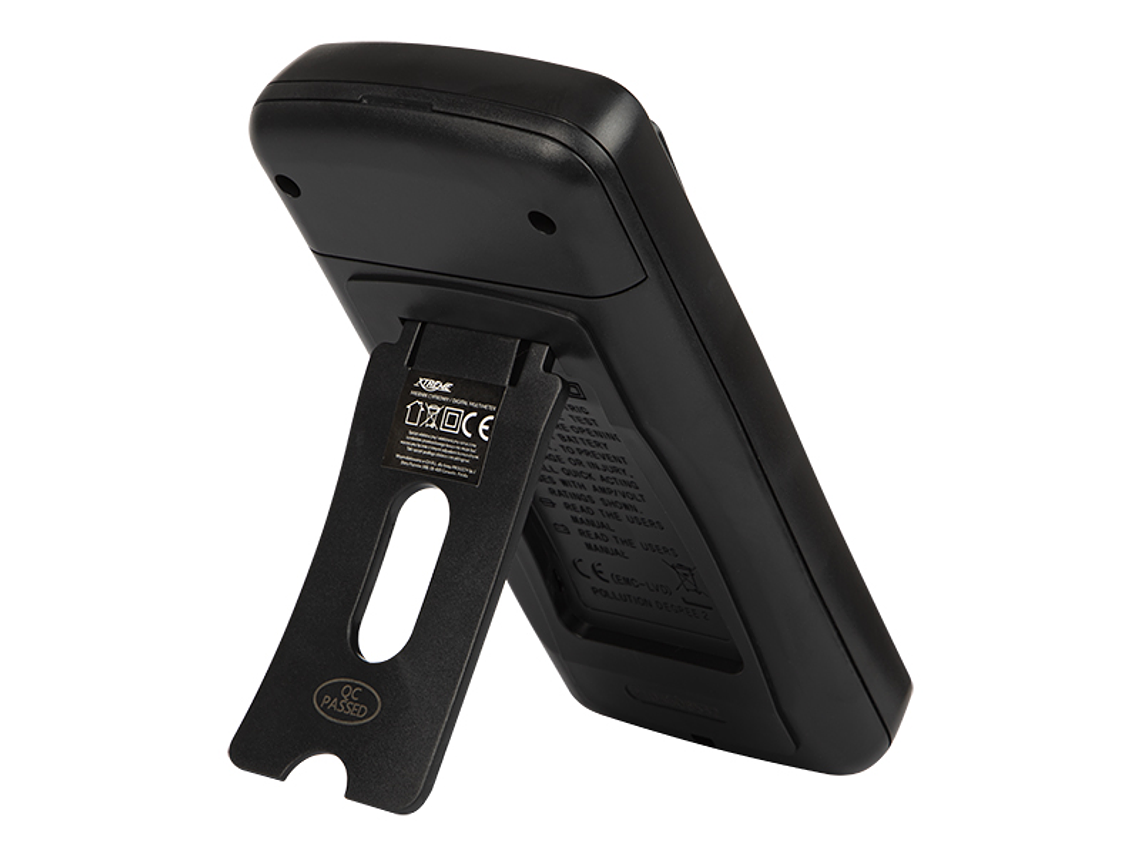

It is characterized by a very readable LCD display with the possibility of adjustment and angle adjustment, as well as a protective and removable rubber cover, and on the back there is a built-in stand that will make it easier to read the results during measurements.
The kit also includes the necessary cables.
What measurements can you see with the meter?
- Direct current voltage
- AC voltage
- Direct current
- AC current
- Resistance
- Capacity
- hFe Transistors
- Diode Test
- Acoustic Continuity Tester
Features
| Direct current voltage | 200mV/2V/20V/200V/1000V±(0.8%+5) |
| AC voltage | 200mV / 2V / 20V / 200V / 750V ± (1.0% + 5) |
| Direct current | 20μA / 200μA / 2000μA / 20mA / 200mA / 2A / 20A ± (2.0% + 2) |
| AC current | 20μA / 200μA / 2mA / 20mA / 200mA / 2A / 20A ± (2.0% + 3) |
| Resistance | 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ / 200MΩ ± (1.0% + 4) |
| Capacity | 2nF / 20nF / 200nF / 2uF / 20uF / 200uF +/- (4% + 5) |
| HFe testing of transistors | YES |
| Acoustic Continuity Tester | YES |
| Diode Test | YES |
| Show | LCD, adjustable |
| Power | 9V battery |
| Sampling frequency | 2 times per second |
| Measurement method | A/D Converter Dual Integral |
| Interval overshoot sign | just the number "1" on the screen |
| Working temperature | 0-40 degrees Celsius |
| Storage Temperature | -10-50 degrees Celsius |
| Low battery indication | battery icon on screen |
| Product dimensions | 190x90x33mm |
| Product Weight | 227g |
| Included | meter, batteries, cables required |
